Materials
Aluminum Welding Carbon Steel Stainless Steel
LCD Double-Pulse MIG/MAG Welders
MIG-500X
LCD Separate-Feeder Double-Pulse MIG/MAG Welder
Use this 500-class LCD double-pulse MIG/MAG model when buyers need a higher-output separate-feeder route with visible process proof and quotation-ready documentation.

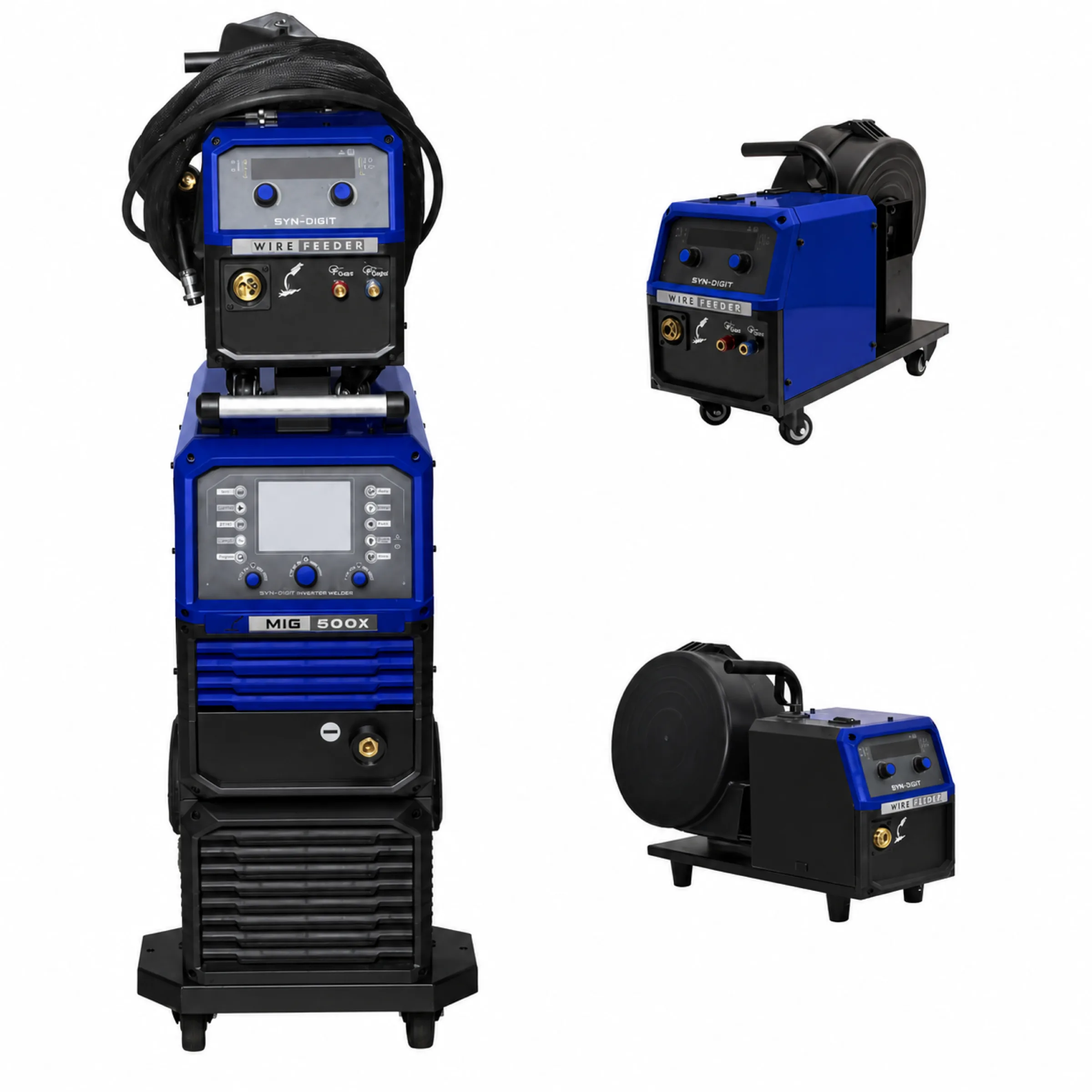

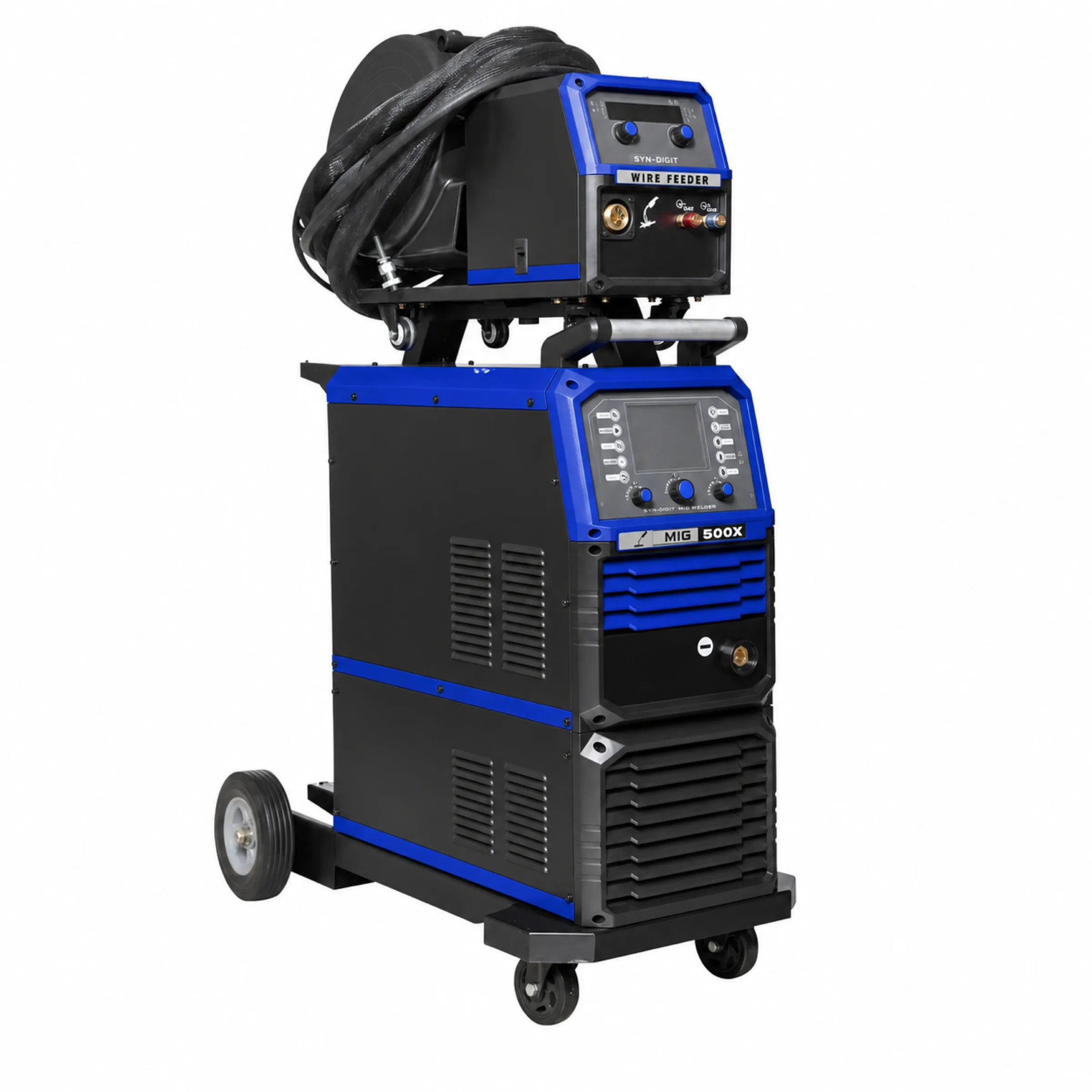

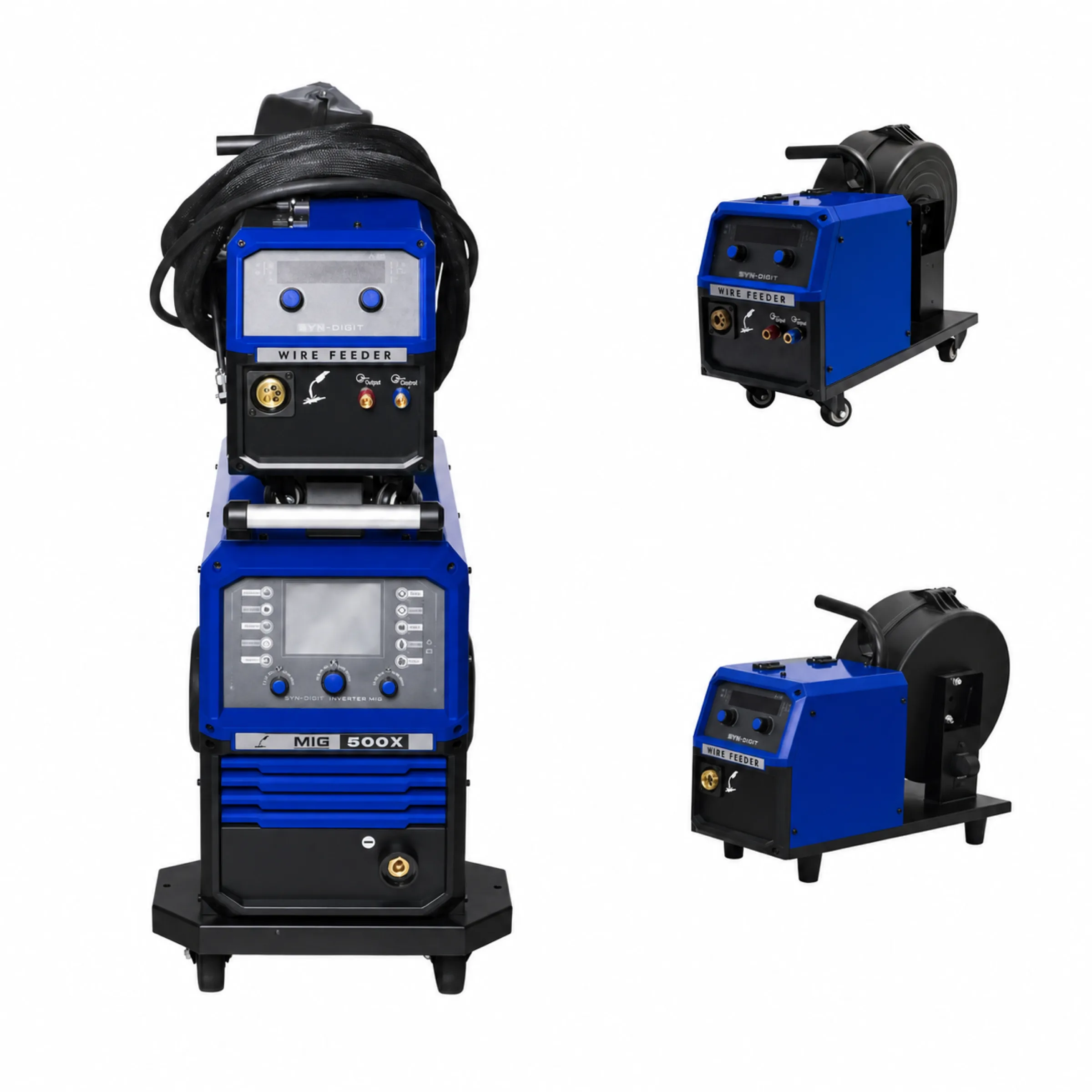

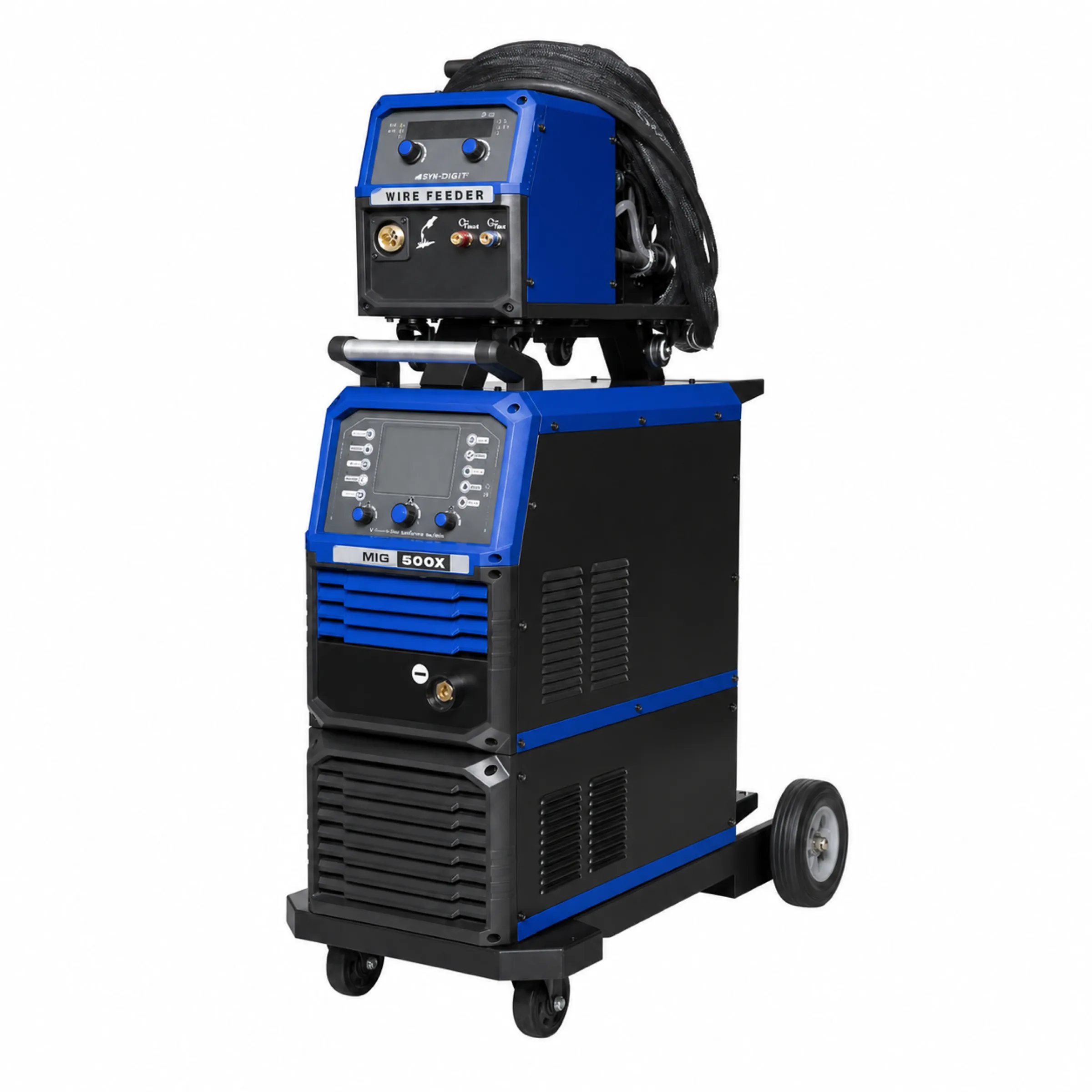

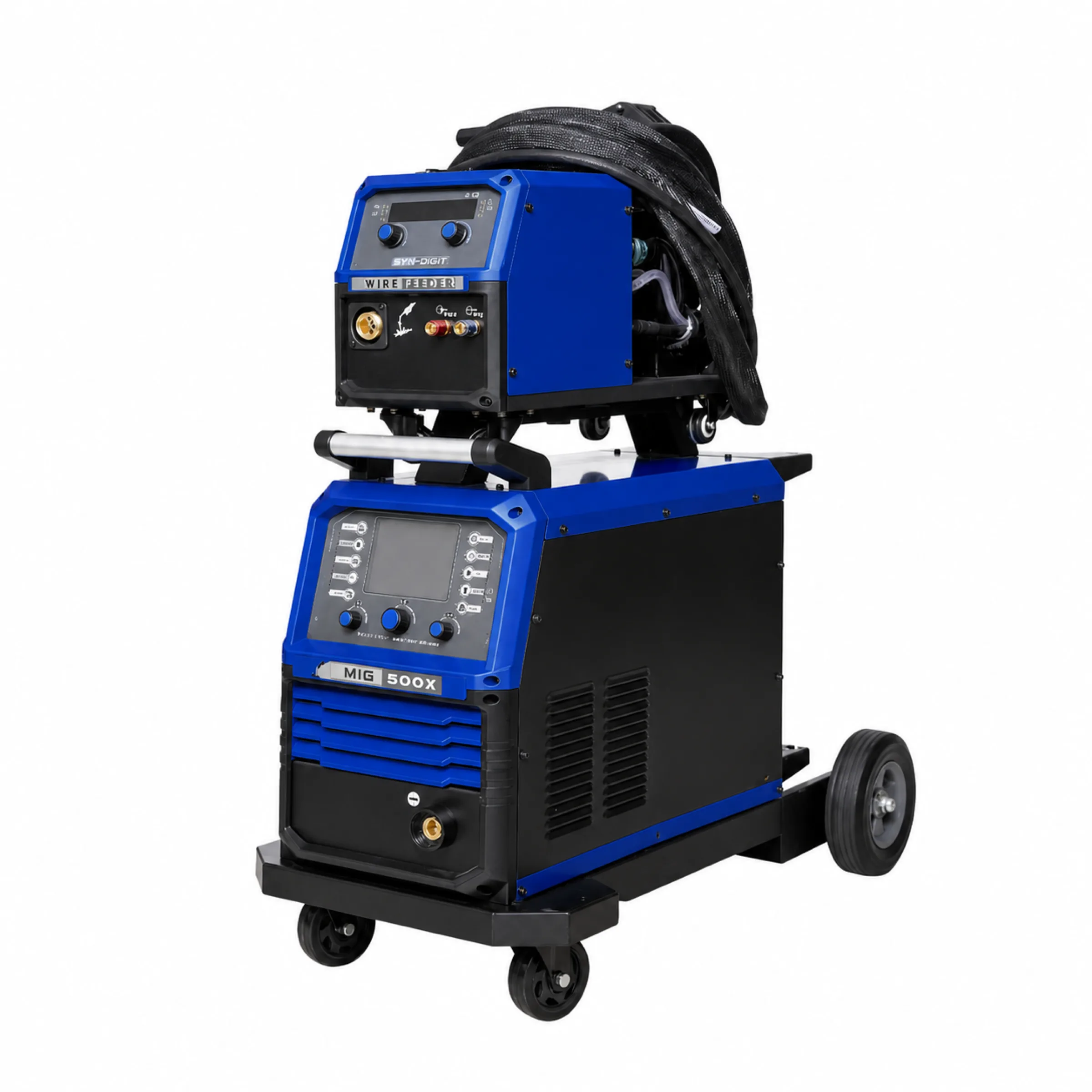

Product image gallery
MIG-500X
Hover to inspect details. Click to enlarge.
Process
MIG/MAG
Current
500A
Pulse
Double-Pulse
Cooling
Air-Cooled / Water-Cooled
Model Options
Find the right model faster.
Compare each option by power, cooling, feeder type, and typical workshop use.
| Visual | Option | Current | Input | Cooling | Screen | Feeder | Body |
|---|---|---|---|---|---|---|---|
 | MIG-500X LCD Separate-Feeder Double-Pulse MIG/MAG Welder | 500A | Three Phase; 380V | Air-Cooled | LCD | External Wire Feeder | Separate Feeder |
 | MIG-500XW Water-Cooled LCD Double-Pulse MIG/MAG Welder | 500A | Three Phase; 380V | Water-Cooled | LCD | External Wire Feeder | Separate Feeder |
Model Specifications
Key facts for model comparison.
Use these specifications to compare process, power supply, current class, cooling, feeder style and material fit.
- Product page
- MIG-500X
- Configuration options
- MIG-500X / MIG-500XW
- Process family
- MIG/MAG
- Product category
- MIG/MAG Welders
- Product line
- LCD Double-Pulse MIG/MAG Welders
- Input voltage
- 3PH/380V
- Phase
- 3PH
- Maximum current
- 500A
- Current class
- 500-Class
- Pulse mode
- Double-Pulse
- Cooling
- Air-Cooled / Water-Cooled
- Screen
- LCD
- Wire feeder
- External Wire Feeder
- Body type
- Separate Feeder
- Input power
- 380V / Three Phase
- Material application
- Aluminum Welding / Carbon Steel / Stainless Steel
Configuration
- Screen: LCD
- Wire feeder: External Wire Feeder
- Body type: Separate Feeder
- Input power: 380V / Three Phase
Documents
DEYUN MIG-500X Spec Sheet
Product-specific reviewed documents can be requested by model.
Buyer Questions
Is MIG-500X a water-cooled model?
MIG-500X is the air-cooled route. Use MIG-500XW when the buyer needs the water-cooled LCD route.
What is the public product line for MIG-500X?
MIG-500X belongs under LCD Double-Pulse MIG/MAG Welders.
RFQ
Confirm the power supply and configuration before quotation.
Different input voltage and phase options may be available by model. Specify the required configuration when placing an order.
