Materials
Aluminum Welding Carbon Steel Stainless Steel
Spool Gun / Multi-Process Pulse MIG Welders
MFL-200

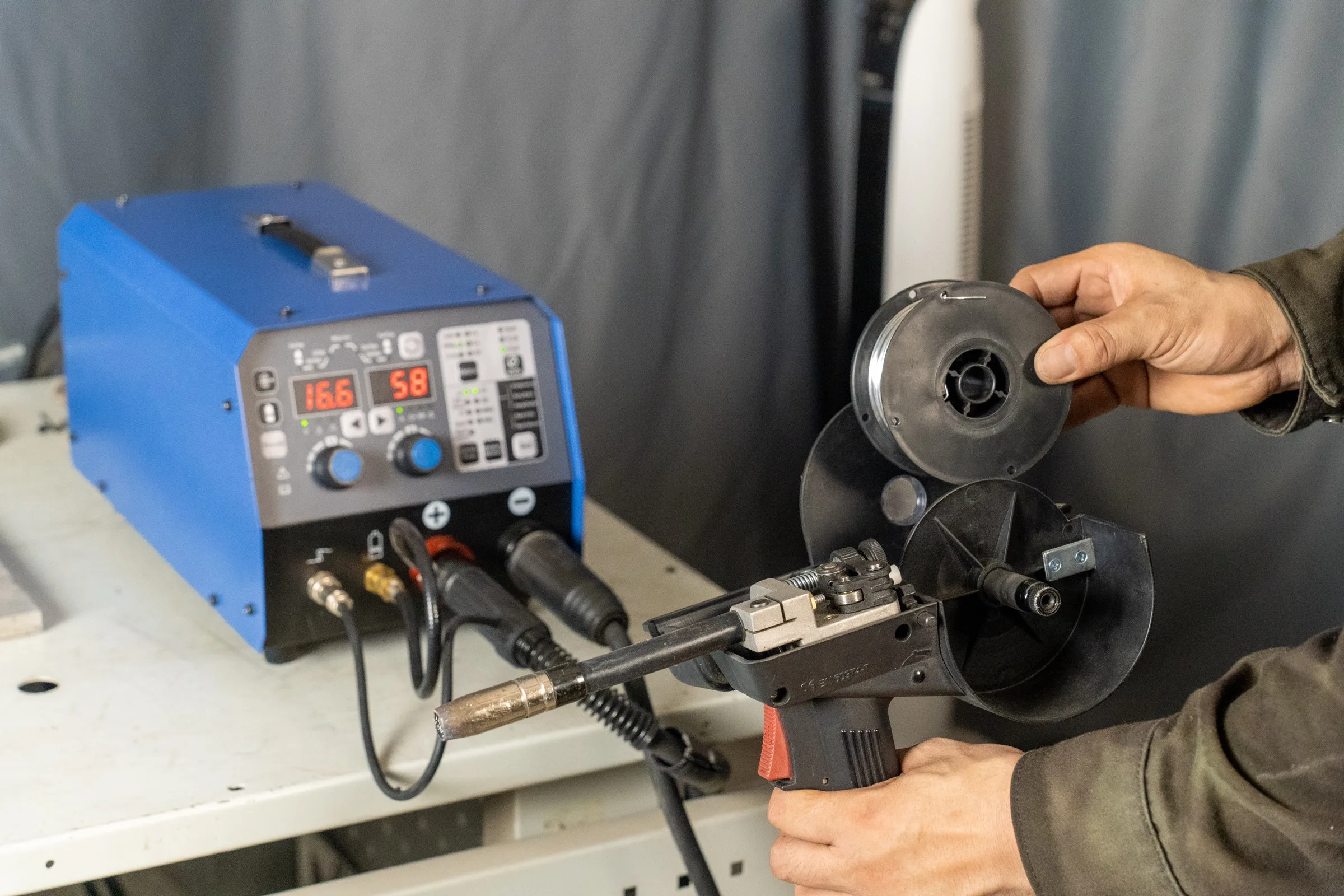

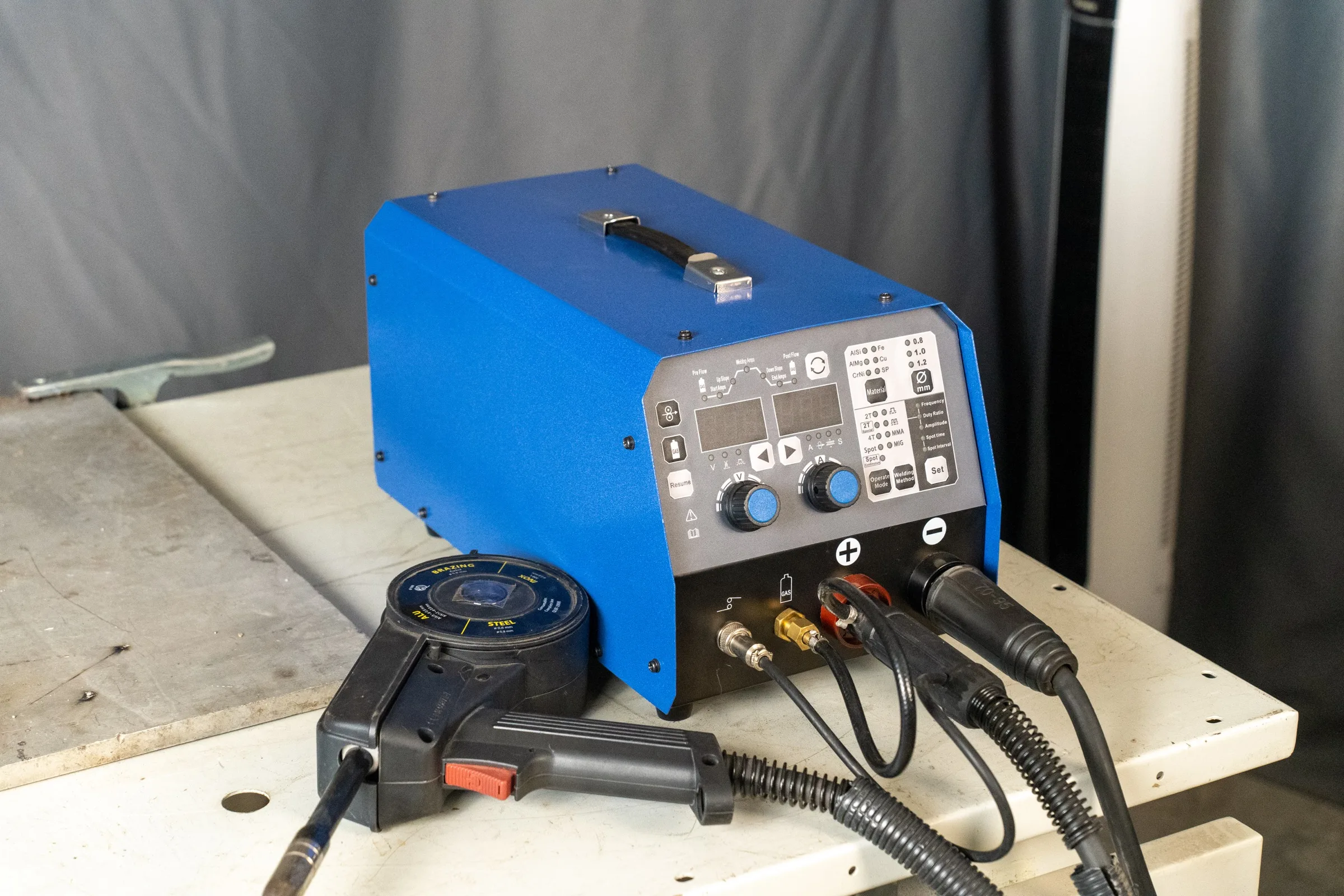

Compact Multi-Process Pulse MIG Welder with Spool Gun
Super-mini portable 200-class spool-gun pulse / double-pulse MIG/MAG welder for automotive aluminum/steel repair and light fabrication.
Product image gallery
MFL-200
Hover to inspect details. Click to enlarge.
Process
MIG/MAG
Current
160A pulse / 200A non-pulse
Pulse
Single-Pulse
Cooling
Air-Cooled
Model Options
Find the right model faster.
Compare each option by power, cooling, feeder type, and typical workshop use.
| Visual | Option | Current | Input | Cooling | Screen | Feeder | Body |
|---|---|---|---|---|---|---|---|
 | MFL-200 Compact Multi-Process Pulse MIG Welder with Spool Gun | 160A pulse / 200A non-pulse | Single Phase; 220V | Air-Cooled | No LCD | Spool Gun | Compact |
Model Specifications
Key facts for model comparison.
Use these specifications to compare process, power supply, current class, cooling, feeder style and material fit.
- Product page
- MFL-200
- Configuration options
- MFL-200
- Process family
- MIG/MAG
- Product category
- MIG/MAG Welders
- Product line
- Spool Gun / Multi-Process Pulse MIG Welders
- Input voltage
- 1PH/220V
- Phase
- 1PH
- Maximum current
- 160A pulse / 200A non-pulse
- Current class
- 200-Class
- Pulse mode
- Single-Pulse
- Cooling
- Air-Cooled
- Screen
- No LCD
- Wire feeder
- Spool Gun
- Body type
- Compact
- Input power
- 220V / Single Phase
- Material application
- Aluminum Welding / Carbon Steel / Stainless Steel
Configuration
- Screen: No LCD
- Wire feeder: Spool Gun
- Body type: Compact
- Input power: 220V / Single Phase
Documents
DEYUN MFL-200 Spec Sheet
Product-specific reviewed documents can be requested by model.
RFQ
Confirm the power supply and configuration before quotation.
Different input voltage and phase options may be available by model. Specify the required configuration when placing an order.
