Materials
Aluminum Welding Carbon Steel Stainless Steel
Economy Double-Pulse MIG/MAG Welders
MIG-350E
Economy Separate-Feeder Double-Pulse MIG/MAG Welder
MIG-350E covers MIG-350E / MIG-350E Comp / MIG-350EW configurations in the Economy Double-Pulse MIG/MAG Welders line.
Product image gallery
MIG-350E
Hover to inspect details. Click to enlarge.
Process
MIG/MAG
Current
350A
Pulse
Double-Pulse
Cooling
Air-Cooled / Water-Cooled
Model Options
Find the right model faster.
Compare each option by power, cooling, feeder type, and typical workshop use.
| Visual | Option | Current | Input | Cooling | Screen | Feeder | Body |
|---|---|---|---|---|---|---|---|

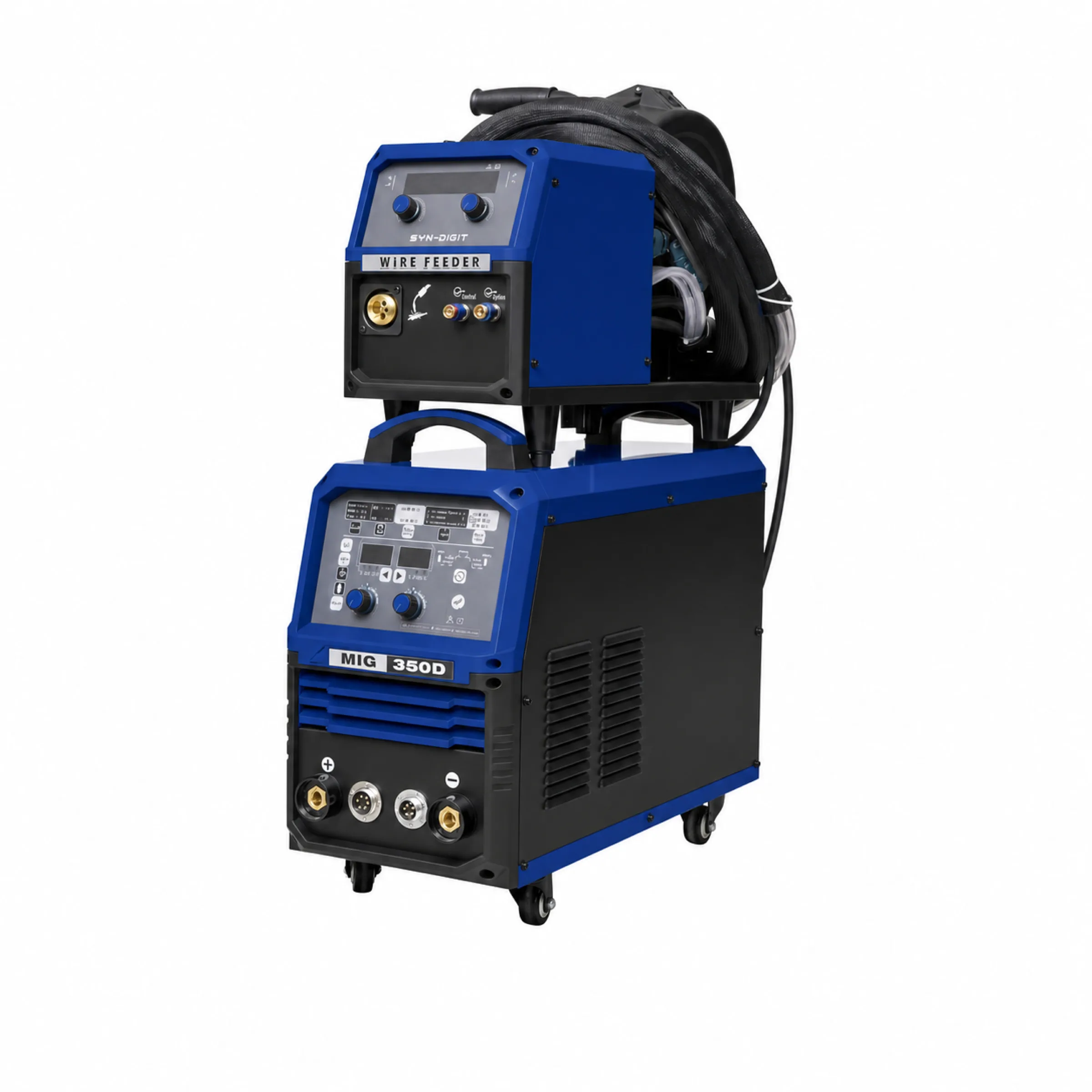

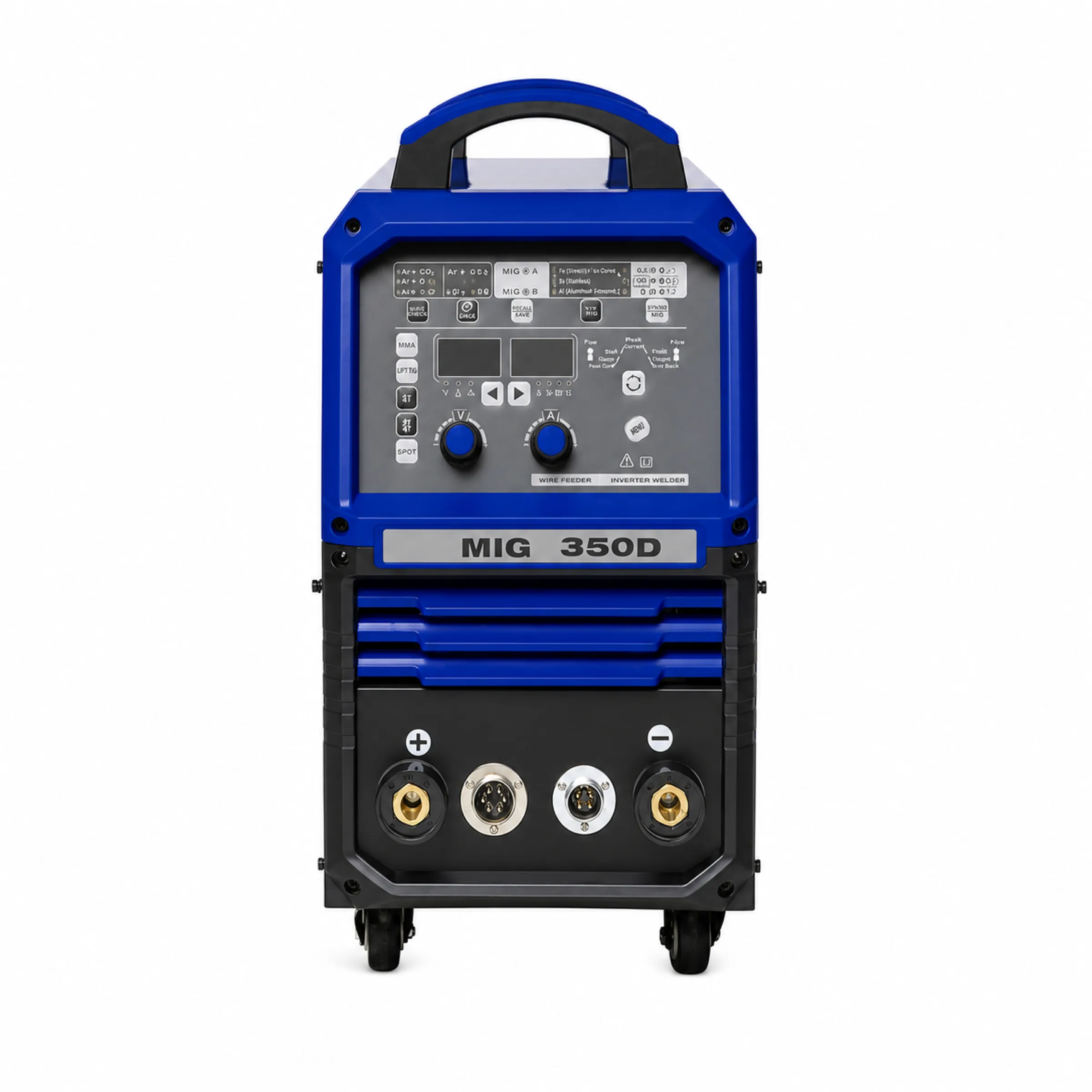

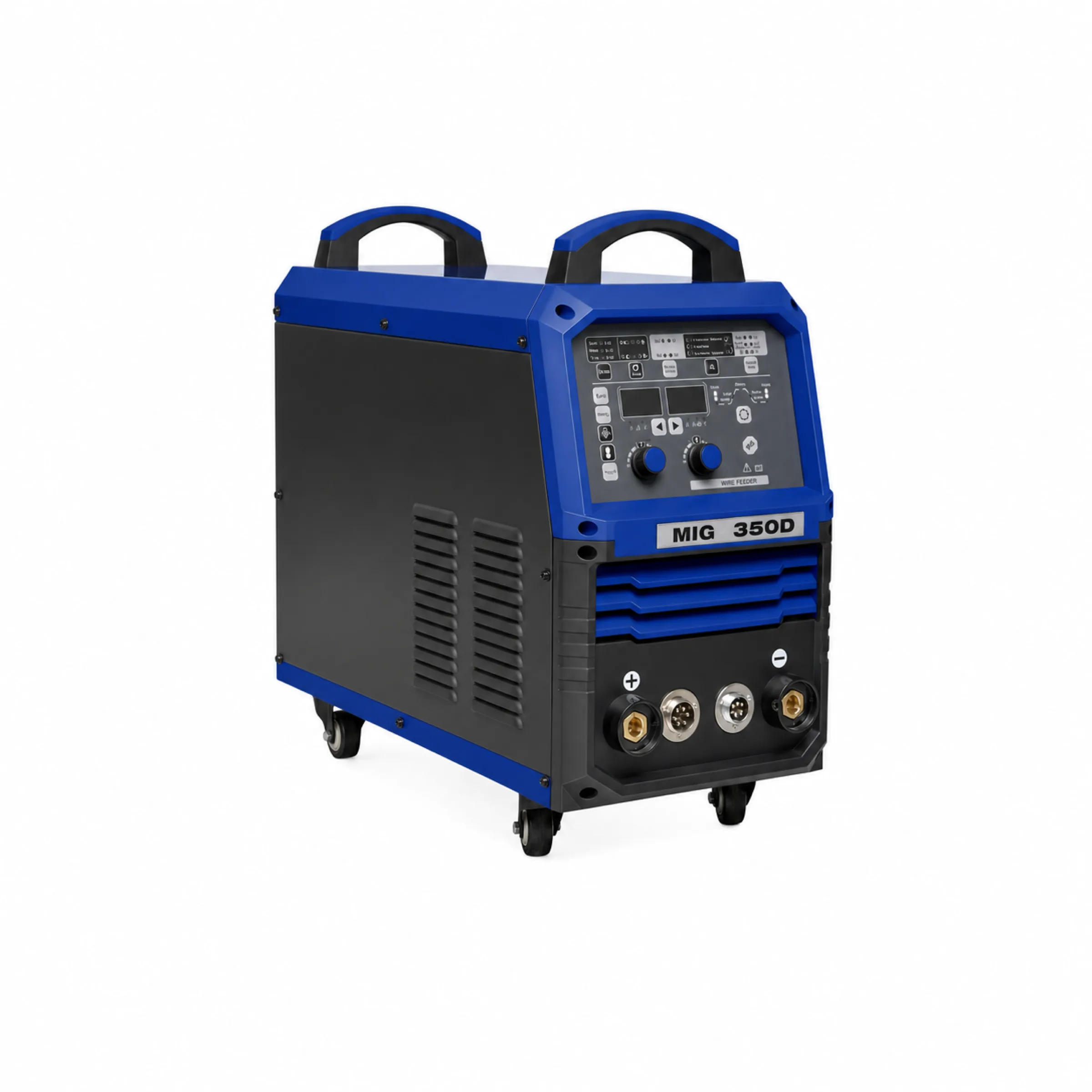

 | MIG-350E Economy Separate-Feeder Double-Pulse MIG/MAG Welder | 350A | Three Phase; 380V | Air-Cooled | No LCD | External Wire Feeder | Separate Feeder |

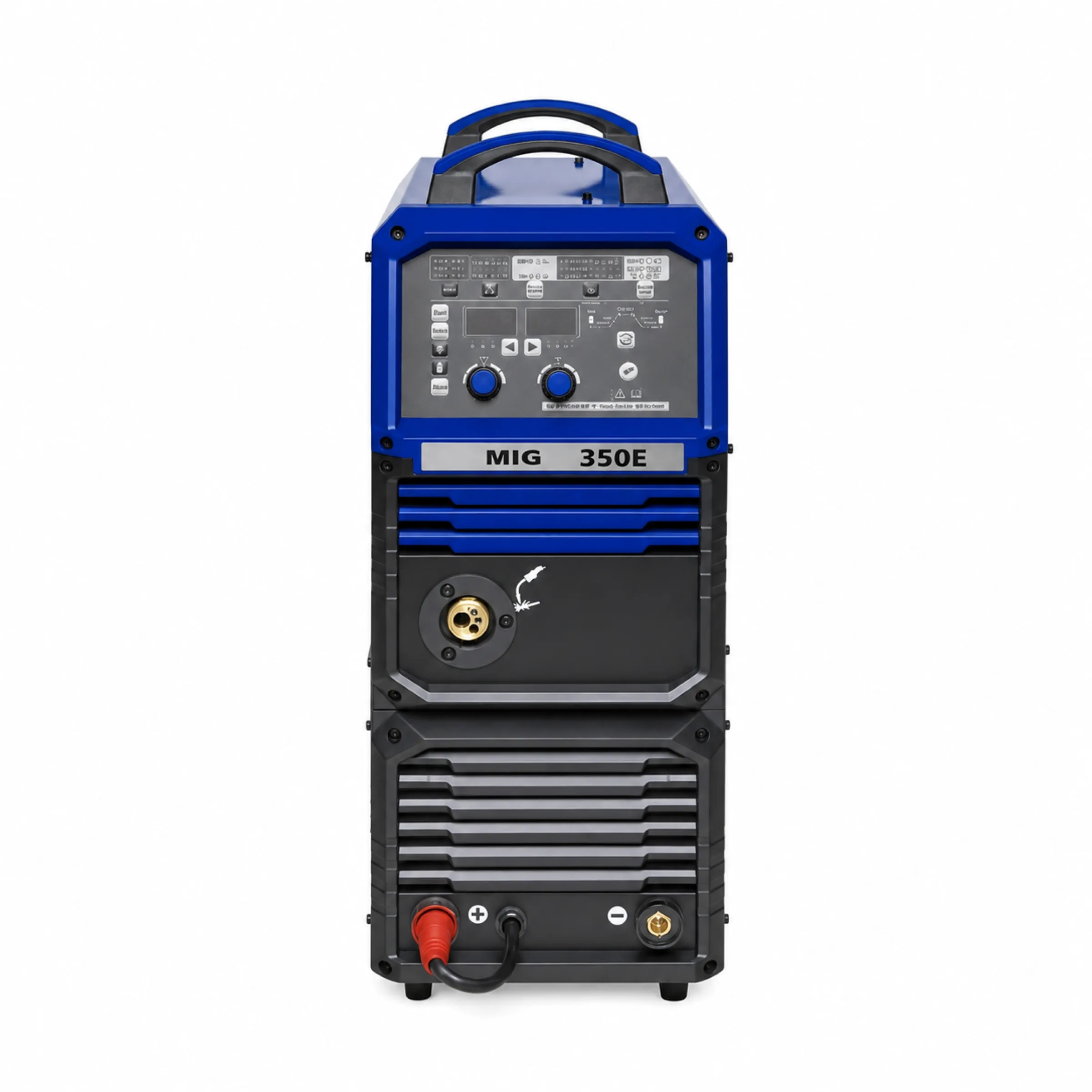

 | MIG-350E Comp Compact Economy Double-Pulse MIG/MAG Welder | 350A | Three Phase; 380V | Air-Cooled | No LCD | Built-In Wire Feeder | Compact |

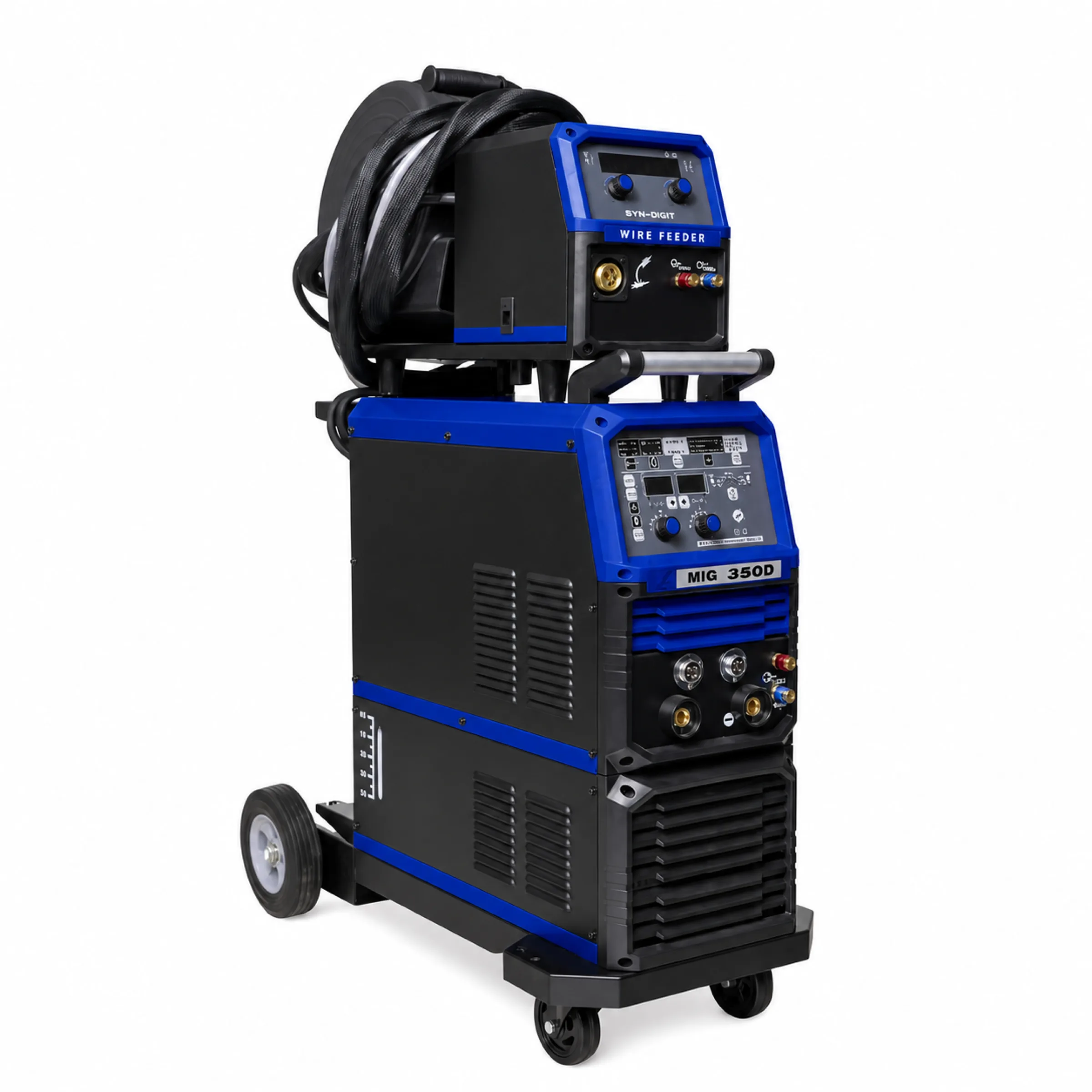

 | MIG-350EW Water-Cooled Economy Double-Pulse MIG/MAG Welder | 350A | Three Phase; 380V | Water-Cooled | No LCD | External Wire Feeder | Separate Feeder |
Model Specifications
Key facts for model comparison.
Use these specifications to compare process, power supply, current class, cooling, feeder style and material fit.
- Product page
- MIG-350E
- Configuration options
- MIG-350E / MIG-350E Comp / MIG-350EW
- Process family
- MIG/MAG
- Product category
- MIG/MAG Welders
- Product line
- Economy Double-Pulse MIG/MAG Welders
- Input voltage
- 3PH/380V
- Phase
- 3PH
- Maximum current
- 350A
- Current class
- 350-Class
- Pulse mode
- Double-Pulse
- Cooling
- Air-Cooled / Water-Cooled
- Screen
- No LCD
- Wire feeder
- Built-In Wire Feeder / External Wire Feeder
- Body type
- Compact / Separate Feeder
- Feature
- Economy
- Input power
- 380V / Three Phase
- Material application
- Aluminum Welding / Carbon Steel / Stainless Steel
Configuration
- Screen: No LCD
- Wire feeder: Built-In Wire Feeder / External Wire Feeder
- Body type: Compact / Separate Feeder
- Input power: 380V / Three Phase
Documents
DEYUN MIG-350E Spec Sheet
Product-specific reviewed documents can be requested by model.
RFQ
Confirm the power supply and configuration before quotation.
Different input voltage and phase options may be available by model. Specify the required configuration when placing an order.
