Materials
Aluminum Welding Carbon Steel Stainless Steel
LCD Double-Pulse MIG/MAG Welders
MIG-280X
LCD Separate-Feeder Double-Pulse MIG/MAG Welder
MIG-280X covers MIG-280X / MIG-280X Comp configurations in the LCD Double-Pulse MIG/MAG Welders line.

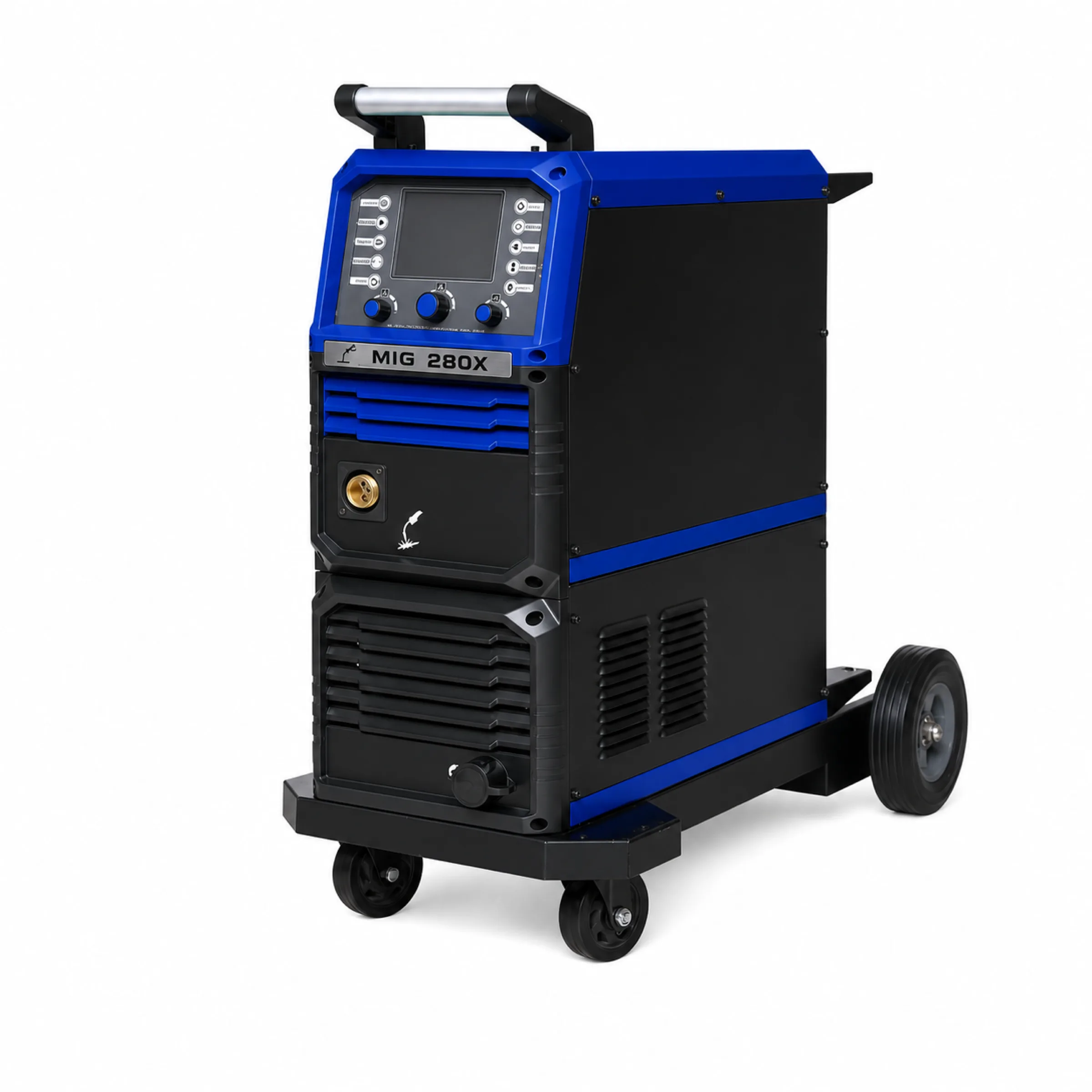

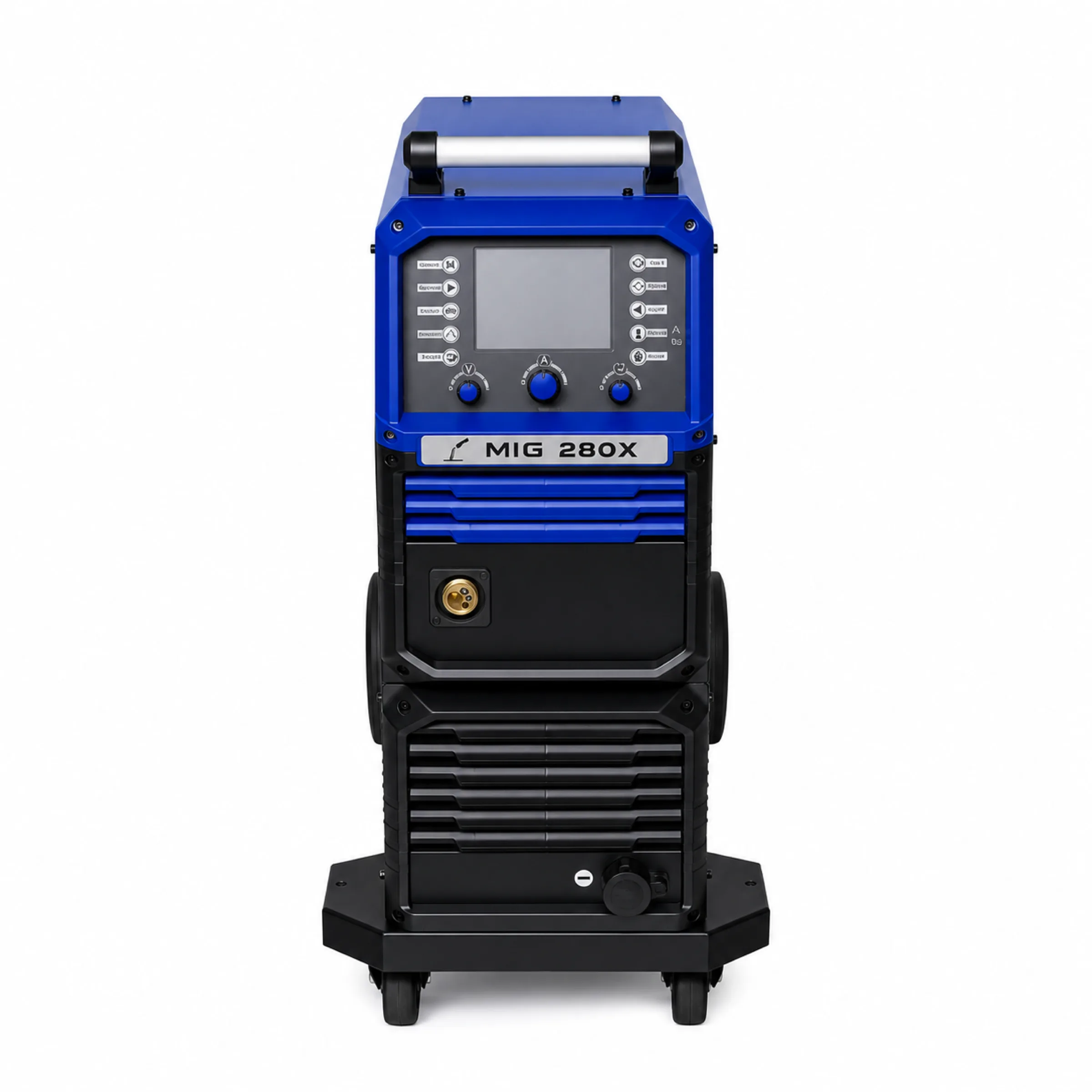

Product image gallery
MIG-280X
Hover to inspect details. Click to enlarge.
Process
MIG/MAG
Current
250A
Pulse
Double-Pulse
Cooling
Air-Cooled
Product Gallery
Product views for visual review.
Review the machine body, front view, side profile and detail photos before confirming the model route.
Model Options
Find the right model faster.
Compare each option by power, cooling, feeder type, and typical workshop use.
| Visual | Option | Current | Input | Cooling | Screen | Feeder | Body |
|---|---|---|---|---|---|---|---|
 | MIG-280X LCD Separate-Feeder Double-Pulse MIG/MAG Welder | 250A | Three Phase; 380V | Air-Cooled | LCD | External Wire Feeder | Separate Feeder |
 | MIG-280X Comp Compact LCD Double-Pulse MIG/MAG Welder | 250A | Three Phase; 380V | Air-Cooled | LCD | Built-In Wire Feeder | Compact |
Model Specifications
Key facts for model comparison.
Use these specifications to compare process, power supply, current class, cooling, feeder style and material fit.
- Product page
- MIG-280X
- Configuration options
- MIG-280X / MIG-280X Comp
- Process family
- MIG/MAG
- Product category
- MIG/MAG Welders
- Product line
- LCD Double-Pulse MIG/MAG Welders
- Input voltage
- 3PH/380V
- Phase
- 3PH
- Maximum current
- 250A
- Current class
- 280-Class
- Pulse mode
- Double-Pulse
- Cooling
- Air-Cooled
- Screen
- LCD
- Wire feeder
- Built-In Wire Feeder / External Wire Feeder
- Body type
- Compact / Separate Feeder
- Input power
- 380V / Three Phase
- Material application
- Aluminum Welding / Carbon Steel / Stainless Steel
Configuration
- Screen: LCD
- Wire feeder: Built-In Wire Feeder / External Wire Feeder
- Body type: Compact / Separate Feeder
- Input power: 380V / Three Phase
Documents
DEYUN MIG-280X Spec Sheet
Product-specific reviewed documents can be requested by model.
RFQ
Confirm the power supply and configuration before quotation.
Different input voltage and phase options may be available by model. Specify the required configuration when placing an order.
