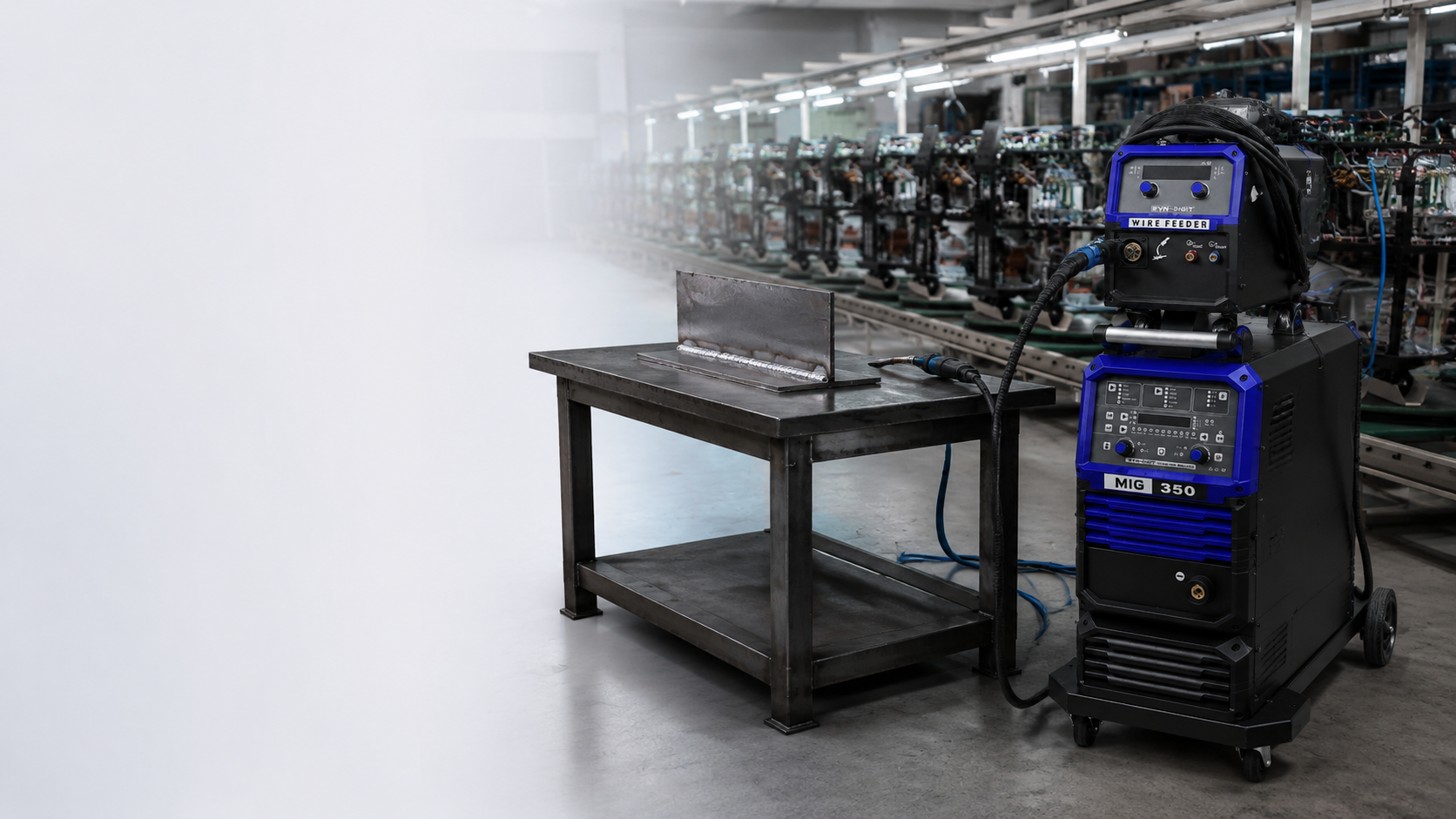

DEYUN welding machine in clean industrial workshop visual
DEYUN logo 2026 Product Range

Welding equipment catalog

Hardcore welding power, without luxury overhead.

Practical welding performance for real workshops. Welding machines for workshops, distributors, and industrial buyers.

MIG/MAG 160A-500A

compact, pulse, LCD, economy, NBC

TIG AC/DC 315A-500A

air-cooled and water-cooled routes

Input routes 1PH / 3PH

220V, 380V, selected 440V options

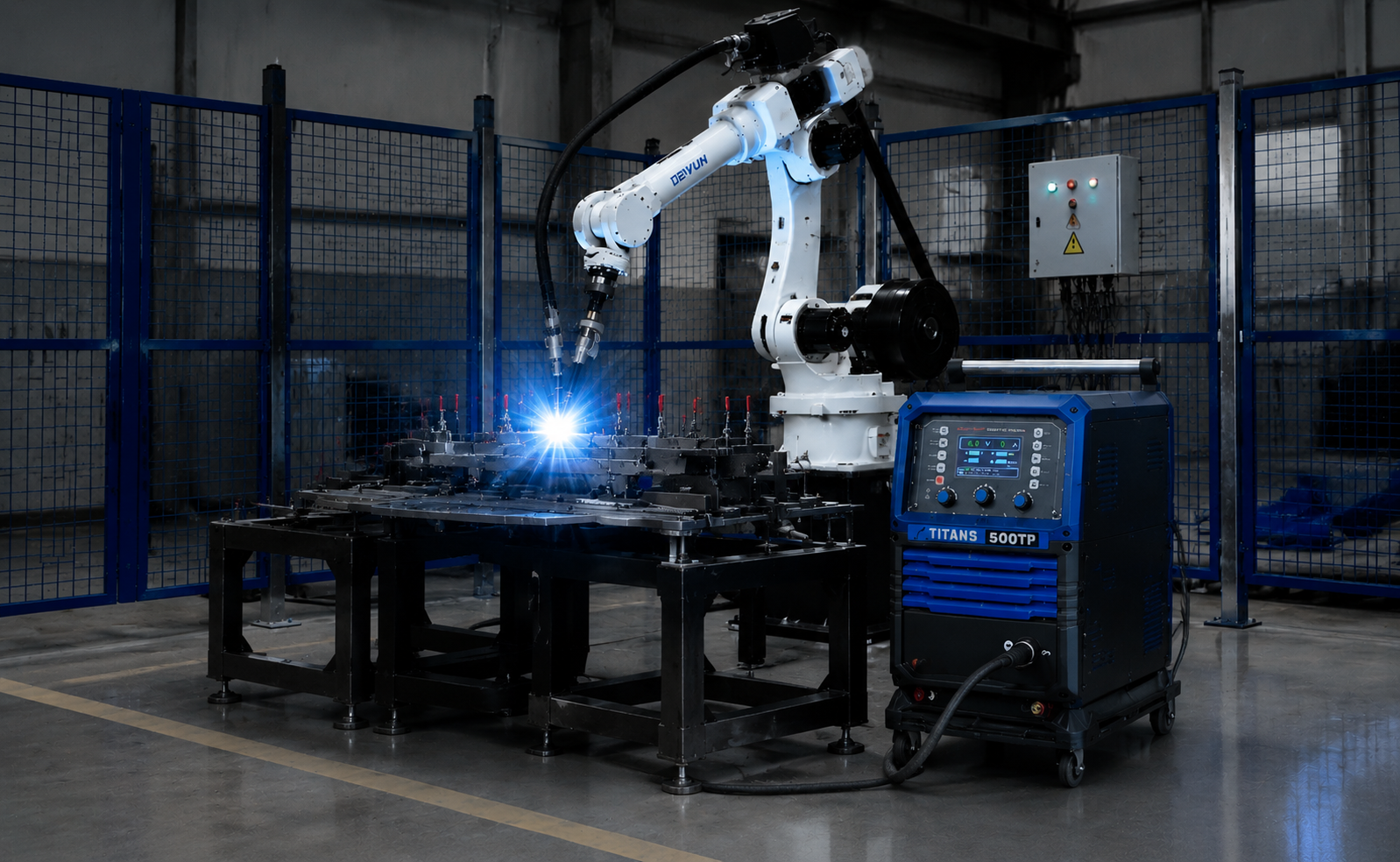

Applications Workshop to robot

repair, fabrication, TIG, and automation

DEYUN-CAT-EN-2026 www.deyunwelds.com 01 / 12

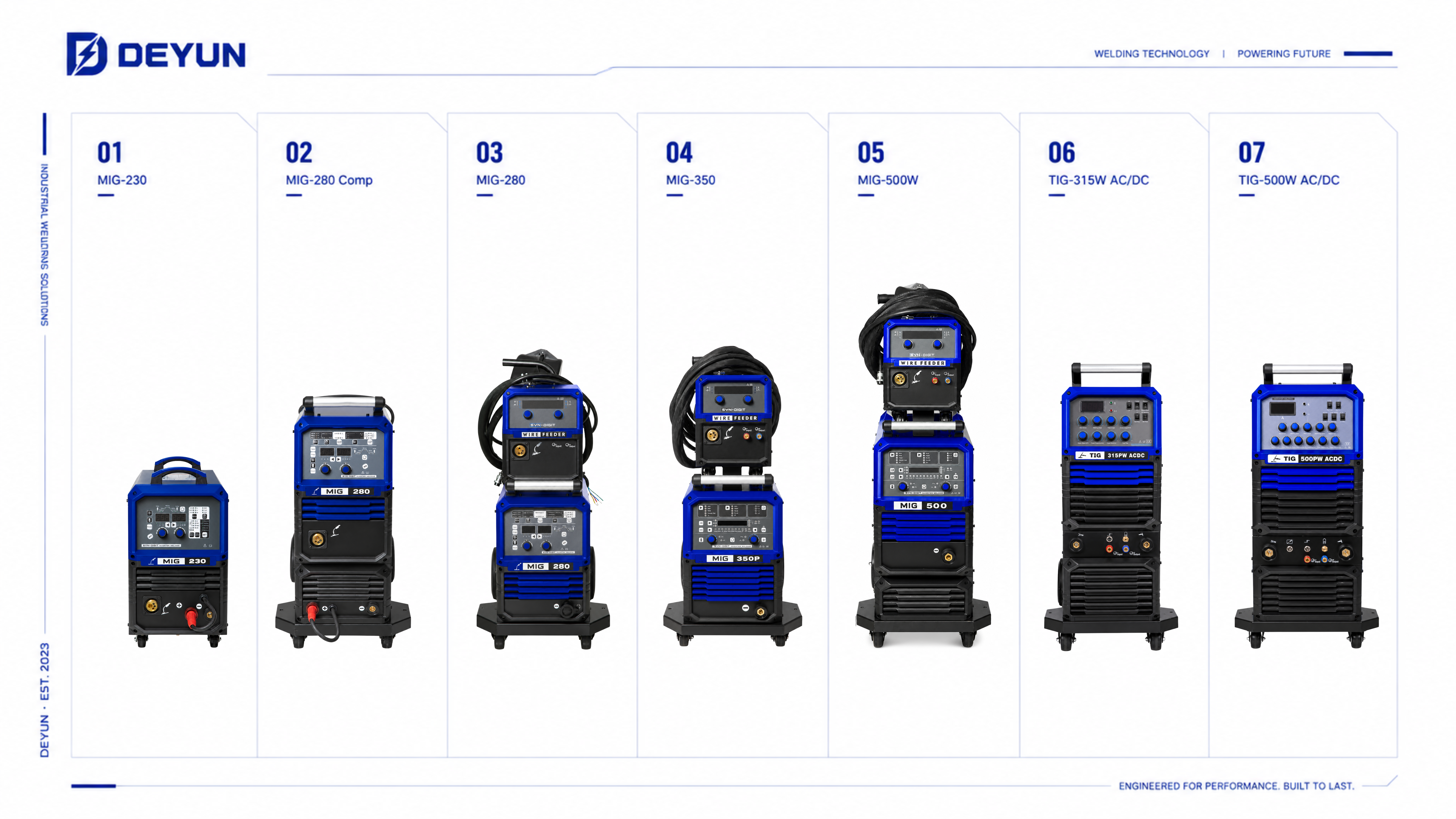

DEYUN product line matrix
DEYUN Welding Equipment Catalog Product line overview 02 / 12

Core product families

Start with the work. Then match the machine.

03
No Model Power Source and Accessories
Spool-Gun / Compact Multi-Process
1 MFL-200 MFL-200 welding machine Compact Multi-Process Pulse MIG Welder with Spool Gun
  • 1PH/220V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 160A (Pulse) / 200A (Non-Pulse)
  • 2.5M(L) 3*4mm²+1*2.5mm² power cable
  • 2.5M(L) 25mm² ground cable with clamp 300A
  • M8*12mm gas hose+9-16mm hose clamp (2PCS)
  • 2.5 M(L) MFL-200 MIG torch (graphite hose inside)
Double Pulse MIG/MAG
2 MIG-200 mini MIG-200 mini welding machine Mini Double-Pulse MIG/MAG Welder
  • 1PH/220V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 160A
  • 2.5M(L) 3*4mm²+1*2.5mm² power cable
  • 2.5M(L) 25mm² ground cable with clamp 300A
  • M8*12mm gas hose+9-16mm hose clamp (2PCS)
  • 3M(L) SN15 Euro connection MIG torch (graphite hose inside)
3 MIG-200 MIG-200 welding machine Compact Double-Pulse MIG/MAG Welder
  • 1PH/220V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 160A
  • 2.5M(L) 3*4mm²+1*2.5mm² power cable
  • 2.5M(L) 25mm² ground cable with clamp 300A
  • M8*12mm gas hose+9-16mm hose clamp (2PCS)
  • 3M(L) SN15 Euro connection MIG torch (graphite hose inside)
4 MIG-230 MIG-230 welding machine Compact Double-Pulse MIG/MAG Welder
  • 1PH or 3PH
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 230A
  • 2.5M(L) 3*4mm²+1*2.5mm² power cable
  • 2.5M(L) 25mm² ground cable with clamp 300A
  • M8*12mm gas hose+9-16mm hose clamp (2PCS)
  • Wire feed drive roll: V 0.8-1.0mm / U1.0-1.2mm
  • 3M(L) SN24 Euro connection MIG torch (graphite hose inside)
5 MIG-280 MIG-280 welding machine Separate-Feeder Double-Pulse MIG/MAG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 280A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 25mm² ground cable with clamp 300A
  • 3M(L) Separate Wire Feeder (35mm²)
  • 9-16mm hose clamp (2PCS)
  • Wire feed drive roll: V 0.8-1.0mm / U1.0-1.2mm
  • 3M(L) SN24 Euro connection MIG torch (graphite hose inside)
DEYUN Welding Equipment Catalog Model configuration reference 03 / 12

Core product families

Start with the work. Then match the machine.

04
No Model Power Source and Accessories
Double Pulse MIG/MAG
6 MIG-280 Comp MIG-280 Comp welding machine Compact Double-Pulse MIG/MAG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 280A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 25mm² ground cable with clamp 300A
  • M8*12mm gas hose+9-16mm hose clamp (2PCS)
  • Wire feed drive roll: V 0.8-1.0mm / U1.0-1.2mm
  • 3M(L) SN24 Euro connection MIG torch (graphite hose inside)
7 MIG-350 MIG-350 welding machine Separate-Feeder Double-Pulse MIG/MAG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 350A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 50mm² ground cable with clamp 400A
  • 3M(L) Separate Wire Feeder (50mm²)
  • 9-16mm hose clamp (2PCS)
  • Wire feed drive roll: V 0.8-1.0mm / U1.0-1.2mm
  • 3M(L) SN36 Euro connection MIG torch (graphite hose inside)
8 MIG-350W MIG-350W welding machine Water-Cooled Separate-Feeder Double-Pulse MIG/MAG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 350A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 50mm² ground cable with clamp 400A
  • 3M(L) Separate Wire Feeder (50mm²)
  • 9-16mm hose clamp (2PCS)
  • Wire feed drive roll: V 0.8-1.0mm / U1.0-1.2mm
  • 3M(L) SN501 Euro connection MIG torch (graphite hose inside)
9 MIG-500 MIG-500 welding machine Separate-Feeder Double-Pulse MIG/MAG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 500A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 70mm² ground cable with clamp 400A
  • 3M(L) Separate Wire Feeder (70mm²)
  • 9-16mm hose clamp (2PCS)
  • Wire feed drive roll: V 0.8-1.0mm / U1.0-1.2mm
  • 3M(L) SN36 Euro connection MIG torch (graphite hose inside)
10 MIG-500W MIG-500W welding machine Water-Cooled Separate-Feeder Double-Pulse MIG/MAG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 500A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 70mm² ground cable with clamp 400A
  • 3M(L) Separate Wire Feeder (70mm²)
  • 9-16mm hose clamp (2PCS)
  • Wire feed drive roll: V 0.8-1.0mm / U1.0-1.2mm
  • 3M(L) SN501 Euro connection MIG torch (graphite hose inside)
DEYUN Welding Equipment Catalog Model configuration reference 04 / 12

Core product families

Start with the work. Then match the machine.

05
No Model Power Source and Accessories
LCD Double Pulse MIG/MAG
11 MIG-280X MIG-280X welding machine LCD Separate-Feeder Double-Pulse MIG/MAG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 250A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 25mm² ground cable with clamp 300A
  • 3M(L) Separate Wire Feeder (35mm²)
  • 9-16mm hose clamp (2PCS)
  • Wire feed drive roll: V 0.8-1.0mm / U1.0-1.2mm
  • 3M(L) SN24 Euro connection MIG torch (graphite hose inside)
12 MIG-280X Comp MIG-280X Comp welding machine Compact LCD Double-Pulse MIG/MAG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 250A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 25mm² ground cable with clamp 300A
  • M8*12mm gas hose+9-16mm hose clamp (2PCS)
  • Wire feed drive roll: V 0.8-1.0mm / U1.0-1.2mm
  • 3M(L) SN24 Euro connection MIG torch (graphite hose inside)
13 MIG-350X MIG-350X welding machine LCD Separate-Feeder Double-Pulse MIG/MAG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 350A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 50mm² ground cable with clamp 400A
  • 3M(L) Separate Wire Feeder (50mm²)
  • 9-16mm hose clamp (2PCS)
  • Wire feed drive roll: V 0.8-1.0mm / U1.0-1.2mm
  • 3M(L) SN36 Euro connection MIG torch (graphite hose inside)
14 MIG-500X MIG-500X welding machine LCD Separate-Feeder Double-Pulse MIG/MAG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 500A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 70mm² ground cable with clamp 400A
  • 3M(L) Separate Wire Feeder (70mm²)
  • 9-16mm hose clamp (2PCS)
  • Wire feed drive roll: V 0.8-1.0mm / U1.0-1.2mm
  • 3M(L) SN36 Euro connection MIG torch (graphite hose inside)
15 MIG-500XW MIG-500XW welding machine Water-Cooled LCD Double-Pulse MIG/MAG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 500A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 70mm² ground cable with clamp 400A
  • 3M(L) Separate Wire Feeder (70mm²)
  • 9-16mm hose clamp (2PCS)
  • Wire feed drive roll: V 0.8-1.0mm / U1.0-1.2mm
  • 3M(L) SN501 Euro connection MIG torch (graphite hose inside)
DEYUN Welding Equipment Catalog Model configuration reference 05 / 12

Core product families

Start with the work. Then match the machine.

06
No Model Power Source and Accessories
LCD Double Pulse MIG/MAG
16 MIG-350XW MIG-350XW welding machine Water-Cooled LCD Double-Pulse MIG/MAG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 350A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 50mm² ground cable with clamp 400A
  • 3M(L) Separate Wire Feeder (50mm²)
  • 9-16mm hose clamp (2PCS)
  • Wire feed drive roll: V 0.8-1.0mm / U1.0-1.2mm
  • 3M(L) SN501 Euro connection MIG torch (graphite hose inside)
Economy Double Pulse MIG/MAG
17 MIG-350E MIG-350E welding machine Economy Separate-Feeder Double-Pulse MIG/MAG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 350A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 50mm² ground cable with clamp 400A
  • 3M(L) Separate Wire Feeder (50mm²)
  • 9-16mm hose clamp (2PCS)
  • Wire feed drive roll: V 0.8-1.0mm / U1.0-1.2mm
  • 3M(L) SN36 Euro connection MIG torch (graphite hose inside)
18 MIG-350E Comp MIG-350E Comp welding machine Compact Economy Double-Pulse MIG/MAG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 350A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 50mm² ground cable with clamp 400A
  • Built-in wire feeder
  • 9-16mm hose clamp (2PCS)
  • Wire feed drive roll: V 0.8-1.0mm / U1.0-1.2mm
  • 3M(L) SN36 Euro connection MIG torch (graphite hose inside)
19 MIG-350EW MIG-350EW welding machine Water-Cooled Economy Double-Pulse MIG/MAG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 350A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 50mm² ground cable with clamp 400A
  • 3M(L) Separate Wire Feeder (50mm²)
  • 9-16mm hose clamp (2PCS)
  • Wire feed drive roll: V 0.8-1.0mm / U1.0-1.2mm
  • 3M(L) SN501 Euro connection MIG torch (graphite hose inside)
20 MIG-500E MIG-500E welding machine Economy Separate-Feeder Double-Pulse MIG/MAG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 500A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 70mm² ground cable with clamp 400A
  • 3M(L) Separate Wire Feeder (70mm²)
  • 9-16mm hose clamp (2PCS)
  • Wire feed drive roll: V 0.8-1.0mm / U1.0-1.2mm
  • 3M(L) SN36 Euro connection MIG torch (graphite hose inside)
DEYUN Welding Equipment Catalog Model configuration reference 06 / 12

Core product families

Start with the work. Then match the machine.

07
No Model Power Source and Accessories
Economy Double Pulse MIG/MAG
21 MIG-500EW MIG-500EW welding machine Water-Cooled Economy Double-Pulse MIG/MAG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 500A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 70mm² ground cable with clamp 400A
  • 3M(L) Separate Wire Feeder (70mm²)
  • 9-16mm hose clamp (2PCS)
  • Wire feed drive roll: V 0.8-1.0mm / U1.0-1.2mm
  • 3M(L) SN501 Euro connection MIG torch (graphite hose inside)
Low-Spatter MIG/MAG
22 Titians-350D Plus Titians-350D Plus welding machine Low-Spatter Pulse MIG/MAG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 350A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 50mm² ground cable with clamp 400A
  • 3M(L) Separate Wire Feeder (50mm²)
  • 9-16mm hose clamp (2PCS)
  • Wire feed drive roll: V 0.8-1.0mm / U1.0-1.2mm
  • 3M(L) SN36 Euro connection MIG torch (graphite hose inside)
23 Titians-500D Plus Titians-500D Plus welding machine Low-Spatter Pulse MIG/MAG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 500A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 50mm² ground cable with clamp 400A
  • 3M(L) Separate Wire Feeder (50mm²)
  • 9-16mm hose clamp (2PCS)
  • Wire feed drive roll: V 0.8-1.0mm / U1.0-1.2mm
  • 3M(L) SN36 Euro connection MIG torch (graphite hose inside)
24 Titians-350D Titians-350D welding machine Low-Spatter MIG/MAG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 350A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 50mm² ground cable with clamp 400A
  • 3M(L) Separate Wire Feeder (50mm²)
  • 9-16mm hose clamp (2PCS)
  • Wire feed drive roll: V 0.8-1.0mm / U1.0-1.2mm
  • 3M(L) SN36 Euro connection MIG torch (graphite hose inside)
TIG AC/DC
25 TIG-315 AC/DC TIG-315 AC/DC welding machine AC/DC TIG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 315A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5m 35mm² ground with clamp 300A
  • M8*12mm gas hose+9-16mm hose clamp*2
  • 5M(L) WP-18 (8mm²)
DEYUN Welding Equipment Catalog Model configuration reference 07 / 12

Core product families

Start with the work. Then match the machine.

08
No Model Power Source and Accessories
TIG AC/DC
26 TIG-315W AC/DC TIG-315W AC/DC welding machine Water-Cooled AC/DC TIG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 315A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5m 35mm² ground with clamp 300A
  • M8*12mm gas hose+9-16mm hose clamp*2
  • 5M(L) WP-18 (8mm²)
27 TIG-400W AC/DC TIG-400W AC/DC welding machine Water-Cooled AC/DC TIG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 400A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 70mm² ground with clamp 400A
  • M8*12mm gas hose+9-16mm hose clamp*2
  • 5M(L) WP-18 (8mm²)
28 TIG-400 AC/DC TIG-400 AC/DC welding machine AC/DC TIG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 400A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 70mm² ground with clamp 400A
  • M8*12mm gas hose+9-16mm hose clamp*2
  • 5M(L) WP-18 (8mm²)
29 TIG-500 AC/DC TIG-500 AC/DC welding machine AC/DC TIG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 500A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 70mm² ground with clamp 400A
  • M8*12mm gas hose+9-16mm hose clamp*2
  • 5M(L) WP-18 (8mm²)
DEYUN Welding Equipment Catalog Model configuration reference 08 / 12

Core product families

Start with the work. Then match the machine.

09
No Model Power Source and Accessories
TIG AC/DC
30 TIG-500W AC/DC TIG-500W AC/DC welding machine Water-Cooled AC/DC TIG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 500A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 70mm² ground with clamp 400A
  • M8*12mm gas hose+9-16mm hose clamp*2
  • 5M(L) WP-18 (8mm²)
NBC CO2 / MAG
31 MIG-280 NBC MIG-280 NBC welding machine NBC CO2 MIG/MAG Welder
  • 3PH/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 280A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 70mm² ground with clamp 400A
  • M8*12mm gas hose+9-16mm hose clamp*2
  • 3M(L) SN24 Euro connection MIG torch
32 MIG-350 NBC MIG-350 NBC welding machine NBC CO2 MIG/MAG Welder
  • 1PH/3PH/220V/380V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 350A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 70mm² ground with clamp 400A
  • M8*12mm gas hose+9-16mm hose clamp*2
  • 3M(L) SN36 Euro connection MIG torch
33 MIG-500 NBC MIG-500 NBC welding machine NBC CO2 MIG/MAG Welder
  • 3PH/220V/380V/440V
  • Other input voltage options available by customization/order confirmation.
  • Max output current: 500A
  • 2.5M(L) 3*6mm²+1*4mm² power cable
  • 2.5M(L) 70mm² ground with clamp 400A
  • M8*12mm gas hose+9-16mm hose clamp*2
  • 3M(L) SN501 Euro connection MIG torch
DEYUN Welding Equipment Catalog Model configuration reference 09 / 12

Weld test library

These weld samples help distributors and buyers evaluate process performance before selecting a model.

10

Weld Test Library

Weld Test Library

These weld samples help distributors and buyers evaluate process performance before selecting a model.

Titians-350D Carbon steel 0.8 mm workshop weld sample
Titians-350D Carbon steel · 0.8 mm Non pulse
Titians-350D Stainless steel 1.5 mm workshop weld sample
Titians-350D Stainless steel · 1.5 mm Non pulse
MFL-200 Aluminum 1.5 mm workshop weld sample
MFL-200 Aluminum · 1.5 mm Single pulse
MFL-200 Carbon steel 5 mm workshop weld sample
MFL-200 Carbon steel · 5 mm Single pulse
MIG-200 Aluminum 1.5 mm workshop weld sample
MIG-200 Aluminum · 1.5 mm Single pulse
MIG-500 Carbon steel 10 mm workshop weld sample
MIG-500 Carbon steel · 10 mm Single pulse
MIG-500 Stainless steel 10 mm workshop weld sample
MIG-500 Stainless steel · 10 mm Double pulse
MIG-500 Aluminum 5 mm workshop weld sample
MIG-500 Aluminum · 5 mm Single pulse
MIG-500XW Carbon steel 10 mm workshop weld sample
MIG-500XW Carbon steel · 10 mm Single pulse
MIG-500XW Stainless steel 10 mm workshop weld sample
MIG-500XW Stainless steel · 10 mm Single pulse
MIG-500XW Aluminum 3 mm workshop weld sample
MIG-500XW Aluminum · 3 mm Single pulse
Robotic Welding / MIG-500 Aluminum 3 mm workshop weld sample
Robotic Welding / MIG-500 Aluminum · 3 mm Double pulse
Robotic Welding / MIG-500 Aluminum 5 mm workshop weld sample
Robotic Welding / MIG-500 Aluminum · 5 mm Double pulse
TIG-500 AC/DC Digital Carbon steel 10 mm workshop weld sample
TIG-500 AC/DC Digital Carbon steel · 10 mm TIG AC/DC
TIG-500 AC/DC Digital Carbon steel 10 mm workshop weld sample
TIG-500 AC/DC Digital Carbon steel · 10 mm TIG AC/DC
TIG-500 AC/DC Digital Aluminum 5 mm workshop weld sample
TIG-500 AC/DC Digital Aluminum · 5 mm TIG AC/DC
DEYUN Welding Equipment Catalog Weld sample photos 10 / 12
DEYUN robotic welding cell concept visual
DEYUN logo Robotic welding projects

Automation welding

Welding power sources and project support for repeatable production.

Robotic weldingJR-1450 solution route10 kg payload / 1450 mm reachCustom automation support for repeatable production

Automation projects are matched to the workpiece, fixture, welding process, and production target.

DEYUN Welding Equipment Catalog Robotic welding projects 11 / 12

About DEYUN

Hardcore welding power, without luxury overhead.

12

Welding equipment for real workshops

Hardcore welding power, without luxury overhead.

Deyun builds weld-first inverter machines for real workshops: serious arc performance, practical durability, and dealer-friendly value without premium-brand overhead.

DEYUN is now a RILAND Group brand. RILAND Group is a publicly listed welding equipment manufacturer in China, listed on the Shenzhen Stock Exchange under stock code 300154.
Shenzhen Deyun Welding Equipment Co., Ltd. 3rd Floor, Building B, No. 3 Xingye 2nd Road, Fenghuang Community, Fuyong Subdistrict, Bao'an District, Shenzhen, China
Web
www.deyunwelds.com
Email
info@deyunwelds.com
Tel
+86-760-87137101
Fax
+86-760-87137102
